Eastman SB54/TV-LTD-GD True Tone Vintage Gloss
Solid Carved Maple Body
Neck Pickup:Lollar Staple P90
Bridge Pickup:Lollar Custom Aged/Wound Soapbar P90
|
|
Eastman SB54/TV-LTD-GD True Tone Vintage Gloss
Neck Material:One-Piece Okoume
Fingerboard:Ebony
Fingerboard Radius:12"
Neck Profile:Traditional Even "C"
Neck Joint:Dovetail
Nut:Bone 1.68" (43mm)
Nut Height:.022"
Fretwire:22 Jescar FW47104-P
Scale Length:24 3/4"
Body Dimensions:13" x 1 7/8"
Body Top:Solid Carved Maple
Body Back/Sides:One-Piece Okoume
Truss Rod:Double Acting
Binding:Body and Neck
Binding Material:Ivoroid
Logo:Pearl Headstock
Inlay:Pearl Crowns
Backplates:Black Plastic
Side Dot Color:Black
Top Coat Finish:Truetone Vintage Gloss
Hardware Color:Antique Nickel
Tailpiece:Faber TPWC-59NA with locking studs
Bridge:Gotoh GE-104B-NI Relic
Tuners:Gotoh SD90 Relic
Knobs:Gold Speed Knobs
Strap Peg:Gotoh EP-A1 Relic
Neck Pickup:Lollar Staple P90
Bridge Pickup:Lollar Custom Aged/Wound Soapbar P90
Pickup Frame:Cream
3 Way Switch:Göldo #EL002
Switch Tip:Ivory
Capacitors:Sprague Orange Drop
Potentiometers:CTS 500K Audio Taper
Output Jack:Switchcraft #11
Pickup Wiring:Gavitt Braided Wire
Strings:D'addario NYXL .010 - .046
Action Height: 2/32"
Case:Hardshell Case |
|
|
_______________________________________________________________________________________________________ |
|
Eastman FT'62DC Moss Black
Body Back/Sides: Roasted Black Limba
Case: FT Padded Gigbag |
|
Eastman FT'62DC Moss Black
Neck Material: Roasted Maple
Fingerboard: Rosewood
Fingerboard Radius: 12"
Neck Profile: Medium Round
Neck Joint: Fullertone 2 Bolt Long Tenon
Nut: Bone 1.68" (42.8mm)
Nut Height: .022"
Fretwire: Jescar FW47104-P
Scale Length: 25.5"
Body Style: Double Cut
Body Back/Sides: Roasted Black Limba
Truss Rod: Dual Acting
Logo: Eastman Electric Pearl Black
Inlay: Pearl Dots
Backplates: Anodized Aluminum
Pickguard: Anodized Aluminum
Side Dot Color: Black
Finish: Truetone Satin
Hardware Color: Nickel
Bridge: Floating Tremolo with Brass Sustaining Block
Tuners: 6 In-line Staggered
Knobs: White
Strap Peg: Nickel
Neck Pickup: Tonerider SQ1-WH, staggered Noiseless Singlecoil
Middle Pickup: Tonerider SQ1-WH, staggered Noiseless Singlecoil
Bridge Pickup: Tonerider Soapbar Humbucker w/ Custom Goldfoil Cover
3 Way Switch: 3-Way Blade
Switch Tip: White
Capacitors: Orange Drop, 022μF
Potentiometers: CTS 250K Audio Taper
Controls:Master Volume, Neck Tone, Bridge Tone
Strings: D'addario NYXL .010 - .046
Case: FT Padded Gigbag |
|
|
___________________________________________________________________________________________________________ |
|

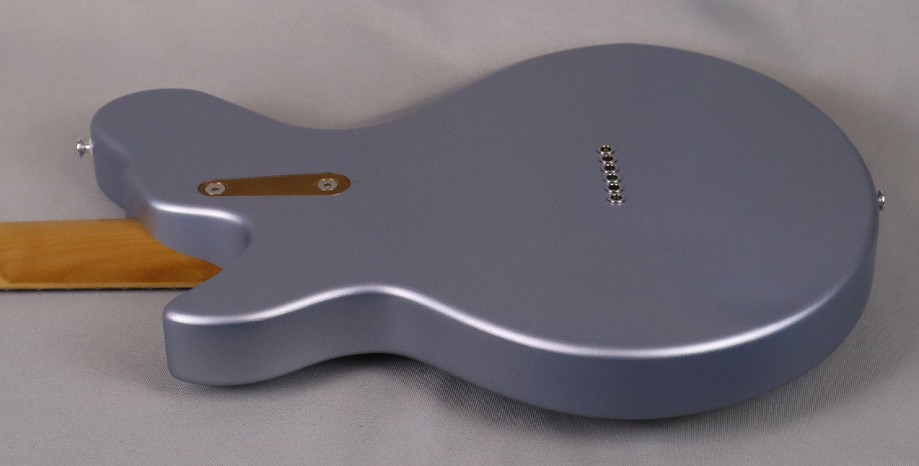

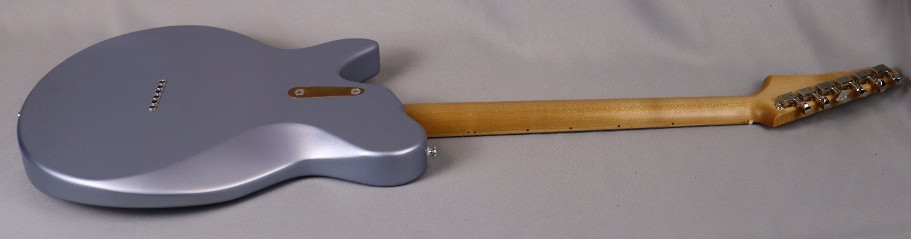

Eastman Juliet-LA Celestine Blue
Neck Material:One-Piece Okoume
Body Back/Sides:One-Piece Okoume
Neck Pickup:Seymour Duncan Radiator Phat Cat P90
Bridge Pickup:Seymour Duncan Radiator Phat Cat P90
Eastman Branded Gig Bag |
|
Eastman Juliet-LA
Neck Material:One-Piece Okoume
Fingerboard:Ebony
Fingerboard Radius:12"
Nut:Bone 1.68"
1st Fret String Height:.022"
Fretwire:Jescar FW47104-P
Scale Length:25.5"
Body Dimensions:13 5/8" W x 16" L
Body Top:N/A
Body Back/Sides:One-Piece Okoume
Truss Rod:Double Acting
Binding:N/A
Binding Material:N/A
Logo:Pearl
Inlay:Pearl Dots
Pickguard:Inlaid Black Acrylic
Side Dot Color:White
Top Coat Finish:Truetone Gloss
Hardware Color:Nickel
Tailpiece:Göldo TLT2N Tremolo
Bridge:Göldo 3-Point Vario Bridge HW2GN
Tuners:Gotoh SD91-05M-L
Knobs:Nickel Plated
Strap Peg:Gotoh EP-A1
Neck Pickup:Seymour Duncan Radiator Phat Cat P90
Bridge Pickup:Seymour Duncan Radiator Phat Cat P90
Pickup Height:3/32" bass side, 3/32" treble side
Pickup Frame:Black
Switch:Göldo #EL002
Switch Tip:Black
Capacitors:.047 Orange Drop
Potentiometers:CTS 500K Audio Taper
Output Jack:Switchcraft #11
Pickup Wiring:Gavitt Braided Wire
Strings:D'Addario NYXL .010 - .046
Action Height:3/32" 12th fret bass, 2/32" 12th fret treble
Case:Padded Gig Bag |
|
|
________________________________________________________________________________________________________ |
|
Eastman Romeo-NYC
Neck Pickup: Seymour Duncan Psyclone Filtertron
Bridge Pickup: Seymour Duncan Psyclone Filtertron
|
|
Eastman Romeo-NYC
Neck Material: Maple
Fingerboard: Ebony
Fingerboard Radius:12"
Nut: Bone 1.72"
Nut Height:.022"
Fretwire: Jescar FFW47104-P
Scale Length:24.75"
Body Dimensions:14.75" x 1.75"
Body Top: Sitka Spruce Laminate
Body Back/Sides: Mahogany Laminate
Truss Rod: Single Acting
Binding: Top and Back
Binding Material: Ivoroid
Logo: Pearl
Inlay: Pearl Dots
Side Dot Color: Pearl Half Circle
Finish: Truetone Gloss finish
Hardware Color: Nickel
Pickguard: None
Tailpiece: Göldo TLT2N Tremolo
Bridge: Göldo-3-point-vario-bridge HW2GN
Tuners: Göldo MGDBL33N Back Locking Tuners
Knobs: Nickel Plated
Strap Peg: Gotoh EP-A1
Neck Pickup: Seymour Duncan Psyclone Filtertron
Bridge Pickup: Seymour Duncan Psyclone Filtertron
Pickup Height:3/32"
Pickup Frame: Creme
3 Way Switch: Göldo EL002
Switch Tip: Ivory
Capacitors:.047 Orange Drop
Potentiometers: CTS 500K AudioTaper
Output Jack: Switchcraft L11
Pickup Wiring: Gavitt Braided Wire
Strings: D’Addario NYXL .011 - .049
Action Height:3/32" 12th fret bass, 2/32" 12th fret treble
Case: Hardshell Case |
|
|
____________________________________________________________________________________________________ |
|
Eastman SB57/N-Black Vintage Nitro
Body Top: Solid Carved Maple
Body Back/Sides:1 Piece Mahogany
Eastman Hardshell Case |
|
Eastman SB57/N - Black Vintage Nitro
Neck Material: One Piece Mahogany
Fingerboard: Ebony
Fingerboard Radius:12"
Nut: Bone 1.68"
Nut Height:.022"
Fretwire: Jescar FW47104-P
Scale Length:24 3/4"
Body Dimensions:13" x 1 7/8"
Body Top: Solid Carved Maple
Body Back/Sides:1 Piece Mahogany
Truss Rod: Single Acting
Binding: Body and Neck
Binding Material: Ivoroid
Logo: Pearl Headstock
Inlay: Pearl Crowns
Backplates: Black Plastic
Topcoat Finish: Vintage Gloss
Hardware Color: Antique Gold
Tailpiece: Gotoh GE101A-GG Relic
Bridge: Gotoh GE-104B-GG Relic
Tuners: Gotoh SD90 Relic
Knobs: Black Speed Knobs
Strap Peg: Gotoh EP-A1
Neck Pickup: Lollar Custom Aged/Wound Imperial Humbucker
Bridge Pickup: Lollar Custom Aged/Wound Imperial Humbucker
Pickup Height:3/32"
Pickup Frame: Black Plastic
Switch: 3 Way Switch
Capacitors: Sprague Orange Drop
Potentiometers: CTS 500K Audio Taper
Output Jack: Switchcraft #11
Pickup Wiring: Gavitt Braided Wire
Strings: D'addario NYXL .010 - .046
Action Height:3/32" and 2/32"
Case: Hardshell Case |
|
|
____________________________________________________________________________________________________ |
|
Eastman SB59-RB (Redburst)
Solid Flame Maple Top
Solid One Piece Mahogany Back and Sides
Eastman Hardshell Case |
|
SB59-RB
Weight: Approx. 8 lbs. 9.8 oz
Neck Material: One Piece Mahogany
Fingerboard: Ebony
Fingerboard Radius:12"
Nut: Bone 1 11/16"
1st Fret String Height:.022"
12th Fret String Height: Bass .078" & Treble .062"
Fretwire: Jescar FW47104
Scale Length:24 3/4"
Body Dimensions:13" x 1 7/8"
Body Top: Solid Flame Maple
Body Back/Sides:1 Piece Mahogany
Truss Rod: Single Acting
Binding: Body and Neck
Binding Material: Ivoroid
Logo: Pearl Headstock
Inlay: Pearl Crowns
Backplates: Black Plastic
Top Coat Finish: Gloss Finish
Hardware Color: Nickel
Tailpiece: Gotoh GE101A-NI
Bridge: Gotoh GE-103B
Tuners: Gotoh SD90
Knobs: Gold Speed Knobs
Strap Peg: Gotoh EP-A1
Neck Pickup: Seymour Duncan '59
Bridge Pickup: Seymour Duncan '59
Pickup Height:3/32"
Pickup Frame: Cream
3 Way Switch: Switchcraft
Switch Tip: Switchcraft Ivory
Capacitors: Sprague Orange Drop
Potentiometers: CTS 500K Audio Taper
Output Jack: Switchcraft
Strings: D'addario NYXL .010 - .046
Action Height:3/32" and 2/32"
Case: Hardshell Case |
|
|
_____________________________________________________________________________________________________ |
|
Eastman T64/v-RD
Antique Varnish Red
Eastman Hardshell Case |
|
Neck Material: Maple
Fingerboard: Ebony
Fingerboard Radius:12"
Neck Profile: Traditional Even "C"
Nut: Bone 1 3/4"
1st Fret String Height:.022"
12th Fret String Height: Bass .078" and Treble .062"
Fretwire:22 Medium Jumbo Jescar 47104
Scale Length:24.75"
Body Style:16" Hollowbody Thinline
Body Dimensions:16" x 1 3/4"
Body Top:Deluxe Maple Laminate
Body Back/Sides: Deluxe Maple Laminate
Truss Rod: Single Acting
Binding: Neck, Body,
Binding Material: voroid
Logo: Pearl Headstock
Inlay: Pearl Split Blocks
Finish: Antique Varnish
Hardware Color: Aged Nickel
Pickguard: Black Plastic with Ivoroid Binding (/v-RD only)
Tailpiece: US Bigsby B7 0495-B7
Bridge: Gotoh Relic Series GE103B
Tuners: Gotoh Relic Series SD90
Knobs: Black Top Hats
Neck Pickup: Lollar Dog Ear P-90
Bridge Pickup: Lollar Dog Ear P-90
Pickup Height:3/32" bass side, 3/32" treble side
Pickup Frame: Black Plastic
3 Way Switch: Switchcraft
Switch Tip: Switchcraft
Capacitors:0.022μF
Potentiometers:250k Audio Linear
Output Jack: Switchcraft
Strings: D’Addario NYXL .011 - .049
Action Height:3/32" bass side 12th fret, 2/32" treble side 12th fret
Case: Hardshell Case |
|
|
____________________________________________________________________________________________________ |
|
Eastman Romeo (Goldburst)
Solid Spruce Top
Laminate Mahogany back and sides
Neck Pickup:Lollar Custom Wound Imperial Humbucker
Bridge Pickup:Lollar Custom Wound Imperial Humbucker |
|
Neck Material:Maple
Fingerboard:Ebony
Fingerboard Radius:12"
Neck Profile:Traditional Even "C"
Nut:Bone 1.72"
Nut Height:.022"
Fretwire:Jescar FFW47104-P
Scale Length:24.75"
Body Style:Thinline Archtop
Body Dimensions:14.75" x 1.75"
Body Top:Solid Spruce
Body Back/Sides:Mahogany Laminate
Truss Rod:Single Acting
Binding:Top and Back
Binding Material:Ivoroid
Logo:Pearl Headstock
Inlay:Pearl Dots
Side Dot Color:Pearl Half Circle
Finish:Gloss Finish
Hardware Color:Nickel
Pickguard:None
Tailpiece:Gotoh GE101A-NI
Bridge:Gotoh GE-104B-NI
Tuners:Gotoh SGS510Z-S5-HAP-XN
Knobs:Ebony Dome Knob
Neck Pickup:Lollar Custom Wound Imperial Humbucker
Bridge Pickup:Lollar Custom Wound Imperial Humbucker
Pickup Height:3/32"
Pickup Frame:Black Plastic
3 Way Switch:Switchcraft 12120X
Switch Tip:Switchcraft Black T12742
Capacitors:0.047μF
Potentiometers:CTS 500K AudioTaper
Output Jack:Switchcraft L11
Strings:D'addario NYXL .011 - .049
Case:Hardshell Case |
|
|
___________________________________________________________________________________________________ |
|
Neck Material:One Piece Okoume Mahogany
Fingerboard:Ebony
Fingerboard Radius:12"
Nut:Bone 1 11/16
Fretwire:22 Jescar FW47104-P
Scale Length:24 3/4"
Body Dimensions:13" x 1 7/8"
Body Back/Sides:1 Piece Okoume Mahogany
Truss Rod:Single Acting
Logo:Pearl Eastman
Inlay:Pearl Dots
Pickguard:Custom Bakalite
Backplates:Bakalite
Side Dot Color:White
Top Coat Finish:Antique Varnish
Hardware Color:Aged Antique Nickel
Bridge:Faber Wrap Around
Tuners:Faber with Oval Knobs
Knobs:Gold Speed Knobs
Strap Peg:Gotoh Relic Series EP-A1
Bridge Pickup:Lollar 50's Spec Dog Ear P-90
Pickup Height:11mm
Capacitors:.022 Sprague Orange Drop
Potentiometers:CTS 500K No-Load on the Tone
Output Jack:Switchcraft #11
Pickup Wiring:Gavitt Braided Wire
Strings:D'addario NYXL .010 - .046
Case:Hardshell Case |
|
|
___________________________________________________________________________________________________ |
|
Neck Material:One Piece Okoume Mahogany
Fingerboard:Ebony
Fingerboard Radius:12"
Nut:Bone 1 11/16
Nut Height:.022"
Fretwire:22 Jescar FW47104-P
Scale Length:24 3/4"
Body Dimensions:13" x 1 7/8"
Body Back/Sides:1 Piece Okoume Mahogany
Truss Rod:Single Acting
Logo:Pearl Eastman
Inlay:Pearl Dots
Pickguard:Custom Bakalite
Backplates:Bakalite
Side Dot Color:White
Top Coat Finish:Antique Varnish
Hardware Color:Aged Antique Nickel
Bridge:Faber Wrap Around
Tuners:Faber with Oval Knobs
Knobs:Gold Speed Knobs
Strap Peg:Gotoh Relic Series EP-A1
Bridge Pickup:Lollar 50's Spec Dog Ear P-90
Pickup Height:11mm
Capacitors:.022 Sprague Orange Drop
Potentiometers:CTS 500K No-Load on the Tone
Output Jack:Switchcraft #11
Pickup Wiring:Gavitt Braided Wire
Strings:D'addario NYXL .010 - .046
Action Height:3/32" and 2/32"
Case:Hardshell Case |
|
|
____________________________________________________________________________________________________ |
|
|
